なぜデプスフィルター技術が有用なのか？
透明で安定した製品の製造に関連する食品および飲料業界のすべての製造プロセスでは、
原材料や製造条件が起因となり濁度やコロイドの安定性に予期せぬバラツキを生じさせることがあります。
このバラツキはフィルターの性能、特に充填前に取り付けられているメンブレンフィルターの性能に大きな負荷を与える可能性があります。
また、製品汚染による回収事故は食品および飲料メーカーにとってもう1つの懸念事項です。
デプスフィルターろ過は、これらの懸念に対応する理想的なソリューションです。
デプスフィルター技術はどこで使えますか？
デプスフィルターろ過は、以下の目的で使用できるように
幅広いラインナップを取り揃えています。
粗い粒子から細かい粒子による濁度の除去
研磨ろ過
コロイド除去
ヘイズの除去
微生物による腐敗予防/微生物（酵母、細菌、カビ）の低減
ザイツ®シート
Seitz Filter sheets have a long-lasting tradition of more than 130 years on the market of depth filtration and play a key role within the Pall Depth Filter portfolio.
Depth filter sheets are made of cellulose fibers, kieselguhr and perlite. They use surface filtration, depth filtration and adsorbtion as main filtration mechanisms.

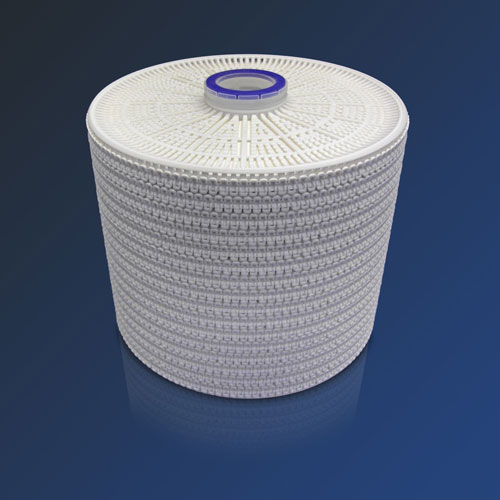

SUPRAdisc™ II
The SUPRAdisc II modules are a design optimization of the traditional "Single Cell" modules which were launched on the market in the 1980s.
With the newly developed "Inside-Outside Separator“ concept Pall has created a block module design which eliminated most of the serious disadvantages in the design of the "Single Cell" modules.
SUPRAdisc II HP
The SUPRAdisc II HP modules provide two step filtration in one module. The modules use a coarse and a fine sheet in combination which allows to do coarse and fine filtration in one housing.
SUPRAdisc II Modules eliminate constructional weaknesses of classical Lenticulars in single cell design using inside-outside separator technology in a filter block design.

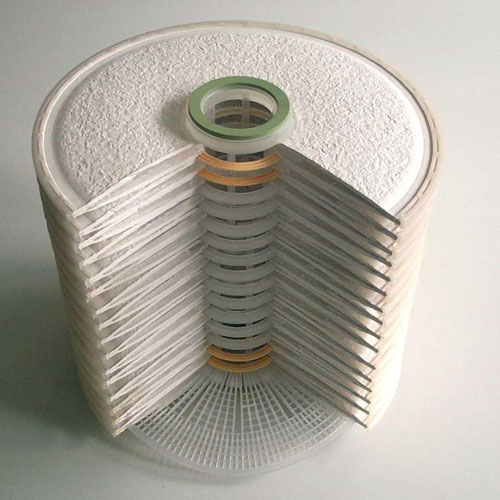

SUPRAdisc 1 HP
The SUPRAdisc 1 filter modules are Pall´s generation one modules, based on the classical single cell design developed in the 1980s.
The SUPRAdisc 1 module design is used to produce 12” SUPRAdisc 1 HP double layer lenticulars equipped with classical DE sheets and ion reduced DE sheets.
サプラパック
SUPRApak modules are Pall’s newest innovation in depth filtration with an entirely unique design and flow configuration. SUPRApak modules consist of filter sheet material wrapped around a central permeable core with external straps that attach the sheet material to the core.
The sheet material is punched with an intricate pattern of feed and filtrate channels which direct fluid flow through the module. The unfiltered fluid enters the module from the outside through feed channels.
サプラパックプラス
SUPRApak Plus is the second generation of our SUPRApak filter series that uses advanced sealing technology to seal unfiltrate to filtrate channels.
Meet the entire range of removal requirements in the food and beverage industry available in multiple grades suitable for applications requiring fine, clarifying and coarse filtration.
SUPRAdisc 1 AKS 4
The SUPRAdisc 1 filter modules are single filter cells incorporating 2 sheets and a drainage core, sealed by injection molding on the outer diameter are then stacked and combined with a flat gasket or bajonett double-O-ring adapter.
The SUPRAdisc 1 module design is used to produce our Activated Carbon Sheet AKS 4 media in 12” and 16” size
スープラハウス
SUPRApak housings provide a closed system approach to depth filtration, maximizing product and operator protection while minimizing product losses.
Products typically filtered with SUPRAPak include wine, beer, distilled spirits, sweeteners, gelatin, enzymes, ingredients, flavors and aromas, etc.
